Concrete guide
How to Measure for Concrete
Measure slabs, patios, pads, and walkways for concrete by finding area, depth, waste, and separate thickened sections.
Updated Reviewed by SupplyCalc Editorial
Quick answer
Measure concrete by finding the finished footprint, converting the depth to feet, then multiplying area by depth. A rectangular slab uses length x width x depth. A circular pad uses radius x radius x 3.1416 x depth. An L-shaped slab is easier to measure as two rectangles, then add the volumes together. Irregular patios should be split into simple rectangles, circles, triangles, or measured from a scaled sketch.

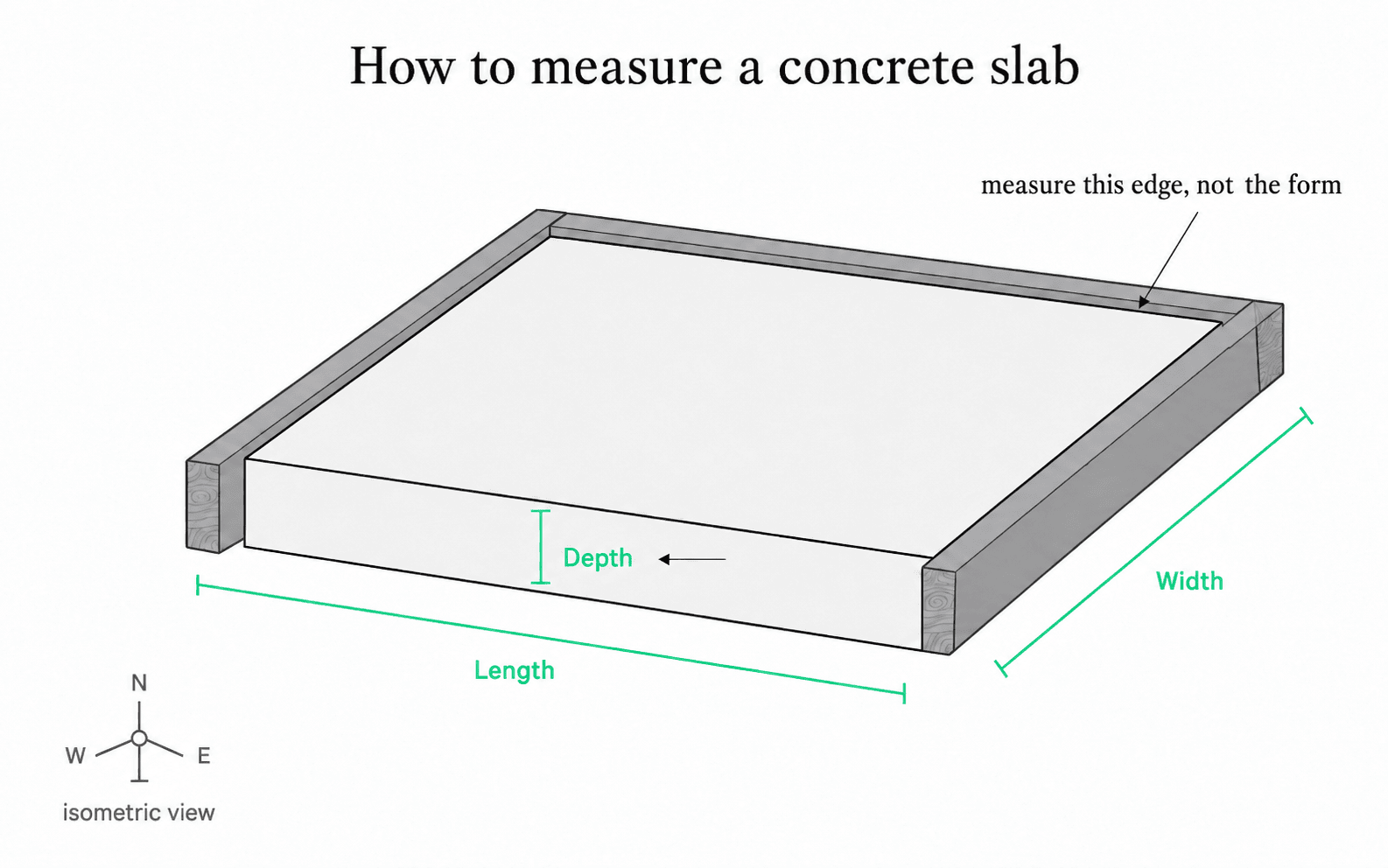

Measure the concrete itself, not the outside of the form lumber. If a slab is planned to finish at 12 ft by 10 ft, use those inside dimensions. Depth is usually entered in inches for residential slabs, so a 4 inch slab is 0.333 ft deep. Once volume is calculated, add waste for rough excavation, form movement, uneven base material, and cleanup.
Concrete measuring formula
For a rectangular slab:
- Measure the inside length and width of the pour.
- Convert slab depth from inches to feet by dividing by 12.
- Multiply length x width x depth in feet.
- Add waste.
- Convert cubic feet to cubic yards by dividing by 27, or divide by bag yield for bags.
A 14 ft by 9 ft pad at 4 inches deep has 126 square feet of area. Four inches is 0.333 ft, so the base volume is about 42 cubic feet. With 10 percent waste, the planning volume is 46.2 cubic feet. That equals 1.71 cubic yards or 77 bags if each 80 lb bag yields 0.60 cubic feet.
Measurement reference table
| Project shape | What to measure | Volume method |
|---|---|---|
| Rectangle | Inside length, inside width, depth | Length x width x depth |
| Circle | Radius or diameter, depth | Radius x radius x 3.1416 x depth |
| L-shape | Two rectangles, depth | Add both rectangular volumes |
| Walkway panels | Each panel length, width, depth | Calculate panels separately |
| Thickened edge | Edge length, extra width, extra depth | Add extra edge volume |
Use separate measurements for any section that changes depth. A patio with a 4 inch field and a 10 inch thickened edge is not one uniform slab. Calculate the main field, then calculate the extra edge volume and add it to the total.
Depth and base checks
Depth drives the estimate. A small depth error can change the order by many bags. Measure from the planned finished top surface down to the prepared base. Do not measure to loose soil that will be compacted later. If gravel base is still being placed, measure after the base is compacted and graded.
For sloped patios, use the average depth only when the slope is shallow and the base is uniform. If one side is much deeper, split the pour into zones. Driveway aprons, footings, ramps, steps, and post pads also need separate zones because their depth is not the same as the main slab.
Waste and jobsite margin
Ten percent waste is a practical starting point for clean residential forms and a prepared base. Increase the margin when forms are rough, edges curve, the excavation is hand-dug, the route from mixer to forms is long, or the base has soft pockets. Waste also covers small losses from tools, wheelbarrows, and finishing.
Do not reduce waste because the measured area looks precise. Field conditions rarely match a neat drawing exactly. It is usually better to carry a small extra margin than to stop a pour short and create a weak edge or cold joint.
Field measuring checklist
Mark each dimension on a simple sketch before opening the calculator. Note the shape, finished length, finished width, planned depth, and any deeper sections. If the form is already built, measure in at least two places because boards can bow. For circles, measure diameter across the widest finished concrete line and divide by two for radius. For irregular patios, label each simple section so the final total can be checked against the drawing.
Take photos of the prepared base and form layout before ordering. They help catch missing steps, odd corners, and depth changes that are easy to overlook when standing in the store.
FAQ
Should I measure outside or inside the concrete forms?
Use the inside dimensions of the finished concrete area. The form boards are not part of the slab volume.
How do I measure concrete depth?
Measure from the finished top of concrete to the prepared base. Enter slab depth in inches unless your calculator asks for another unit.
How much waste should I add?
Start with 10 percent for clean rectangular work. Use more for curved edges, uneven excavation, thickened sections, or difficult handling paths.
Do I subtract control joints?
No. Control joints are cut or tooled into the slab after placement and do not meaningfully reduce the concrete volume.
How do I measure an L-shaped slab?
Break the L into two rectangles, calculate each area, multiply each by depth, then add the volumes together.
How do I handle footings or thickened edges?
Calculate the main slab first. Then calculate the extra footing or edge volume separately and add it to the total.
Sources and assumptions
Last updated 2026-05-09. This guide uses common residential concrete measuring methods, cited concrete material references, and editable SupplyCalc assumptions. Final ordering should follow the project plan, product label, local requirements, and site conditions.
